High-brightness Anti-yellowing Display

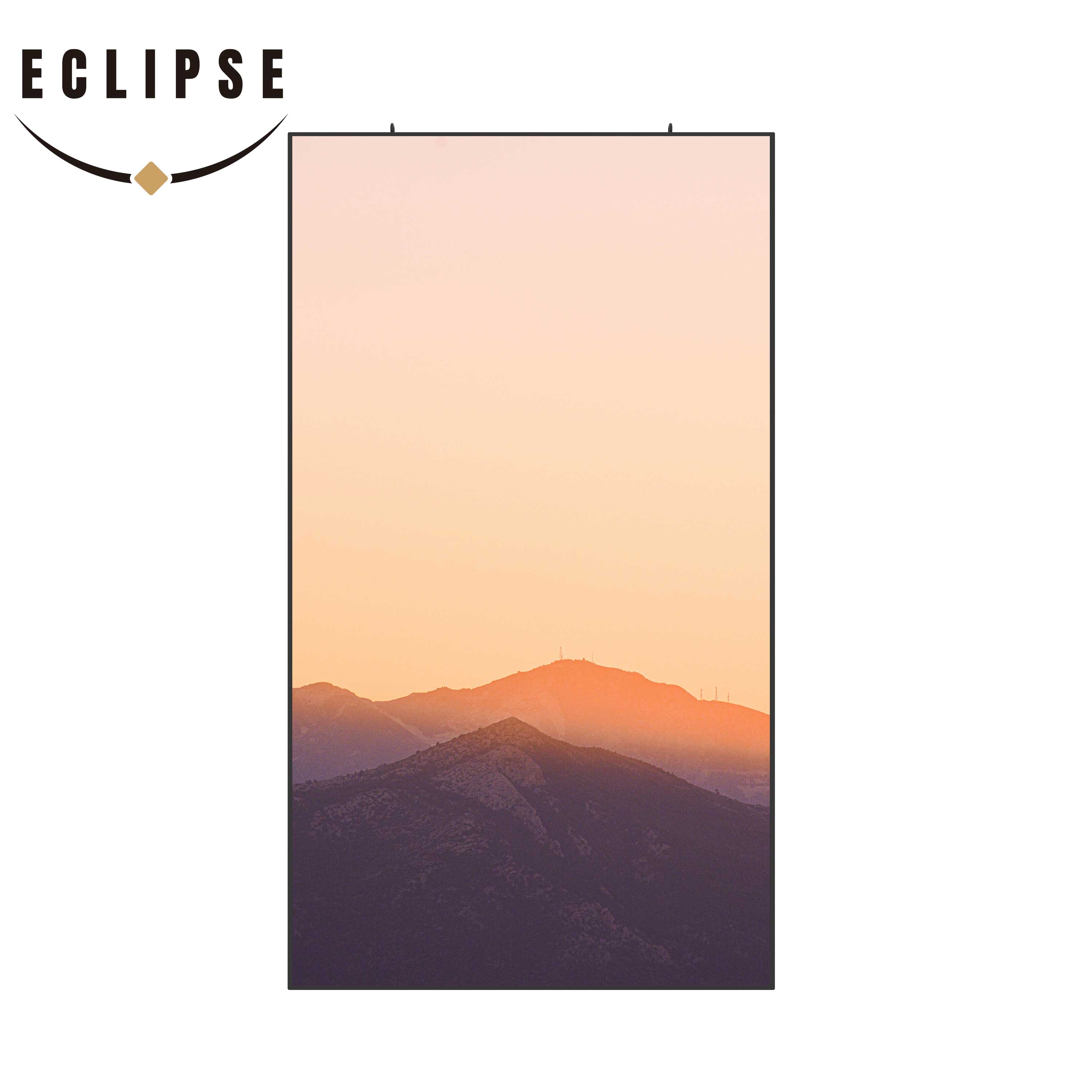

BAB-Eclipse Series Window-facing Display


High Luminance Efficiency Technology

Local Dimming Technology

Screen Blackening Resistance

99% UV Protection

Anti-Yellowing

Fanless Design

Shine Brighter,Stay Greener

The Eclipse Series offers top performance and durability for window-facing applications, featuring 99.9%,UV protection to prevent yellowing and maintain clarity. With a brightness of 4,500 nits, it ensures excellent visibility in all lighting conditions
Its energy-efficient design cuts power consumption by up to 45%, and the fanless operation keeps the environment quiet. Ideal for retail and transportation settings, the Eclipse Series enhances customer engagement and brand visibility while combining sleek aesthetics with reliable functionality
Shine More,Consume Less

4500 nits Brightness

Local dimming technology

High luminance efficiency

With an outstanding 4500nit brightness and local dimming technology, our display ensures crystal-clear content visibility even in direct sunlight. Enhanced by IPS technology, it offers a wide viewing angle experience.
Eclipse Shield:UV-Protected Brilliance

Anti-yellowing

Screen Blackening resistance

Sunlight and high temperatures pose significant threats to outdoor displays, often leading to screen failures. Our Eclipse window-facing display, equipped with Eclipse Shield, protects against UV rays and excessive heat. Additionally, its high luminance efficiency technology ensures lower energy consumption and operating temperatures without compromising brightness, helping to prevent issues such as scree blackening and yellowing.
Perform Smarter, Stay Greener

Competitive Advantages of Brightness Display

Adaptive brightness adjustment

Fanless Design

Our Eclipse window facing display is equipped with high-luminance efficiency technology. It delivers the same brightness as other products while saving Maximum 70% on energy. This is achieved through advanced light-emitting technology that maximizes brightness while minimizing energy consumption, delivering high performance with greater efficiency without requiring additional fan cooling.
* The cost-saving impact may vary based on actual power consumption, billing practices, and the specific policies of the respective country and location.
* Fanless model is available on 49” and 55”.

The Eclipse window facing display features an ambient light sensor that automatically adjusts the screen brightness. This feature ensures clear visibility, increases brightness in bright environments, and reduces brightness in darkness. This innovative feature helps users save energy and reduce unnecessary costs without compromising performance.
* All images in this page are for illustrative purposes only.
75inch
1675.2 x 927.936mm
3840 x 2160
16:9
MiniLED BLU
4500nit
1200:1
Up to 450000:1
1.07 Billion colors
72%
178°/178°
24/7
8ms(Typ)
Portrait or Landscape
Android 14
ARM Quad Core Cortex-A73
Arm Mali-G52 MC1
DDR4 4GB (DDR 4 8GB Optional)
32GB EMMC
Chinese/English
Optional
Optional
Optional / CetusMSC
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
USB2.0 x 2 ,HDMI IN x 2 ,Ethernet(RJ45) x 2 ,RS232(RJ45) x 1 ,IR in x 1 ,Sensor x 1
HDMI Out x 1 ,Audio out x 1
Yes
Optional
Yes
Yes
Yes
Yes
Yes
Yes
Yes
IP5X (Front Panel)
N/A
Aluminum
Black
10mm
1672.06 x 950.64 x 56.85mm
500 x 300mm
N.W 37.2kg G.W 44.6kg
1797 x 1076 x 180mm
72 PCS
144 PCS
Indoor window facing
Light sensor
-10℃ to +35℃ (Direct Sunlight) -10℃ to +45℃ (w/o Direct Sunlight)
10% to 80%
-10℃ to +60℃
10% to 80%
AC 110 /220V,50/60Hz
Built-In Power
<0.5W
850W
445W
Power cord / IR receiver / Remote Control / AAA batteries x 2 / Wifi antenna / Lifting ring(M6) x 2 / Fillier pad(M6) x 2 / Spring pad(M6) x 2 / User manual(Electionic version)
